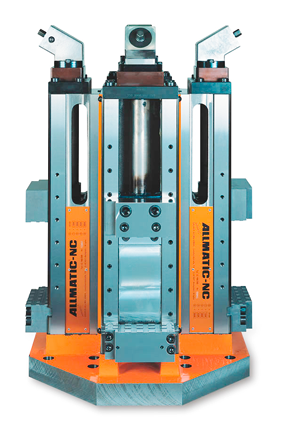

Star set-up-overview

Home > Star set-up-overview

Scope of application:

  • Modular clamping system for horizontal machining centres

Product features:

  • Comprises standard Single (TC series) or DUO vices
  • Clamping force increments can be preset. At most, 2 revolutions are required to reach the max. clamping force
  • Preselectableand reproducible clamping forces enable the workpiece position to berepeated within a tolerance of less than 0.01 mm
  • The spacing between the vices is adapted precisely to the workpiece and machining.
  • 4 or 8 clamping stations enable 3-sided-machining.

Scope of supply:

  • Star set-up 4 x 90° single / Duo incl. standard step reversible jaws
  • 1 hand crank
  • 2 socket screw wrench
