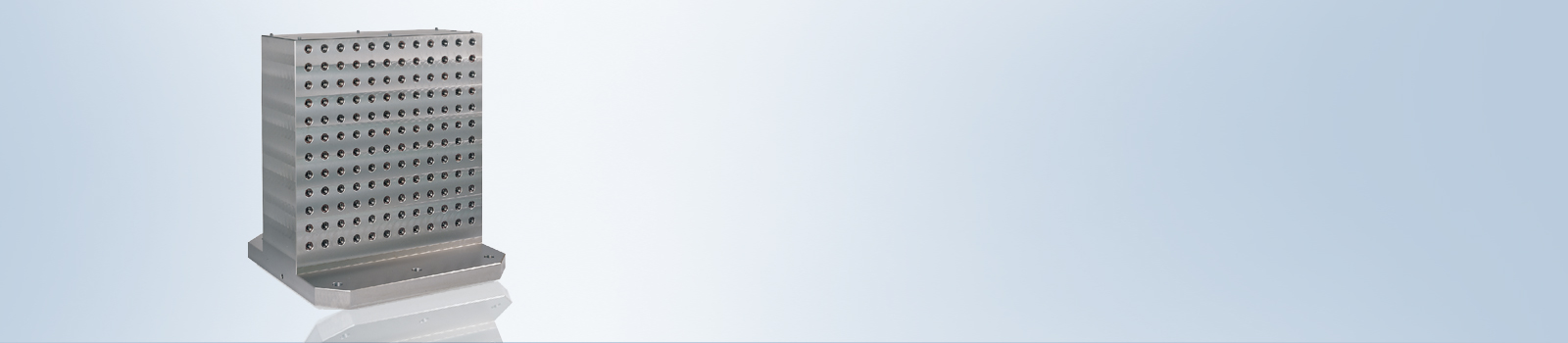

Material : Cast Iron GG30(DIN) / High Strength Aluminum Casting
Heat Treated (Normalized)
Features : 1) Alignment bushing
2) Threaded Insert
3) MTP hole spacing : 50±0.02
4) Grid Holes available in M12 & M16
5) Easily adapts to standardized jig components.
6) Eye bolt & top cover included.
Application : Horizontal machining center.

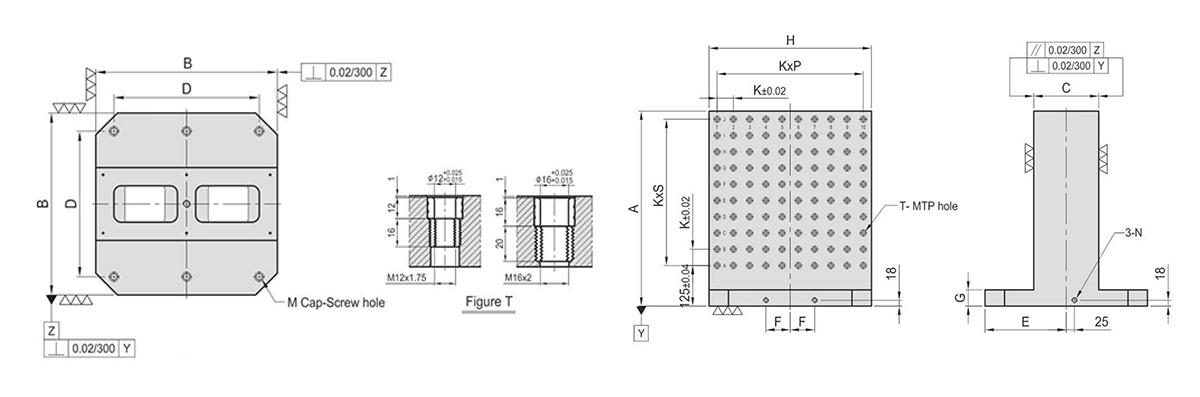

| Model No. | A | B | C | D | E | F | G | H | K | P | S | M | N | MTP | Mounting Holes | Weight in kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cast Iron | Aluminium | ||||||||||||||||
| TSG/RT/80300 | 500 | 300 | 80 | 250 | 150 | 40 | 50 | 300 | 50 | 5 | 7 | M12 | M12 | 96 | 4 | 110 | - |
| TSG/RT/150400 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | 50 | 3 | 7 | M16 | M16 | 128 | 4 | 165 | 56 |
| 650 | 176 | 86 | |||||||||||||||
| TSG/RT/200500 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | 50 | 4 | 9 | M16 | M16 | 200 | 6 | 265 | 91 |
| TSG/RT/250630 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | 50 | 5 | 11 | M16 | M16 | 288 | 6 | 435 | 154 |
