Product features:

• Mechanical centric vice
• Clamping force: 28 kN with 100Nm
• Massive stable base part from tool steel - without holes
• Reversible step jaws, width 67mm
• Threads on high and stepped sides for step strips and customization
• V notch for clamping round workpieces with a diameter of 10 mm 5<=d <= 45 mm
• Hardened slideway and jaws
• Spindle with a high tensile strength of 7001\i/mm2, good sliding properties and a very high wear resistance
• Clamping range 0mm — 164mm

Scope of application:

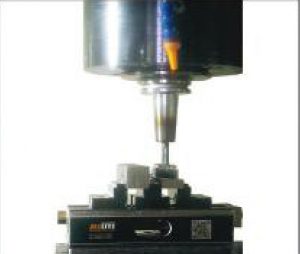

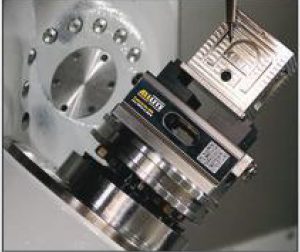

• Ideal for use on 5 axis machining centers

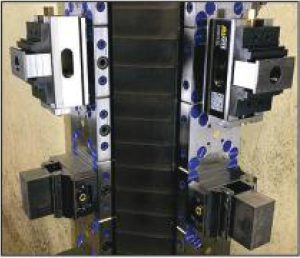

• Horizontal installation - Suitable for vertical machining centers
• Vertical installation - Suitable for Horizontal machining center

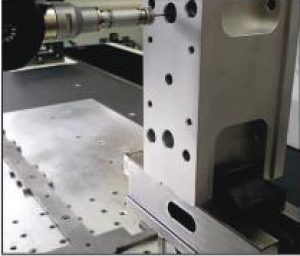

• Suitable for CMM insertion mountings.

Scope of supply:

• 1x CentroLite 68M base part-Blank

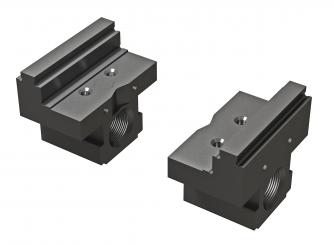

• 1x step jaws b67 smooth (pair)
• 1x spindle 68M complete
