Material : Cast Iron GG30(DIN)/High Strength Aluminum Casting.
Heat Treated (Normalized)
Features : 1) Fully machined on all sides.
2) Side edge locating holes on base.
3) Top cover to keep out chips and coolant.
4) Eye bolt for lifting.
Application : Horizontal machining center.

Home > products > clamping columns > Square Clamping Column TSP/SQ

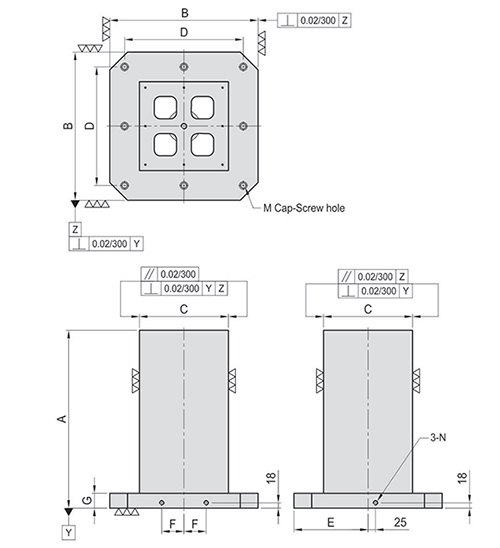

Model No.ABCDEFGMNMounting HolesWeight in kg
Cast IronAluminium
TSP/SQ/1505003001502501504050M12M12490-
TSP/SQ/2505004002503202005550M16M16416056
65021073
TSP/SQ/3006005003004002507550M16M16825091
TSP/SQ/35070063035050031510050M16M168400129
