Material : Cast Iron GG30 (DIN)/ High Strength Aluminum Casting
Heat Treated (Normalized)
Features : 1) Alignment bushing
2) Threaded Inserts
3) MTP hole spacing : 50±0.02
4) Grid Holes available in M12 & M16
5) Eye bolt & top cover included.
6) Easily adapts to standardized jig components.
Application : Horizontal machining center.

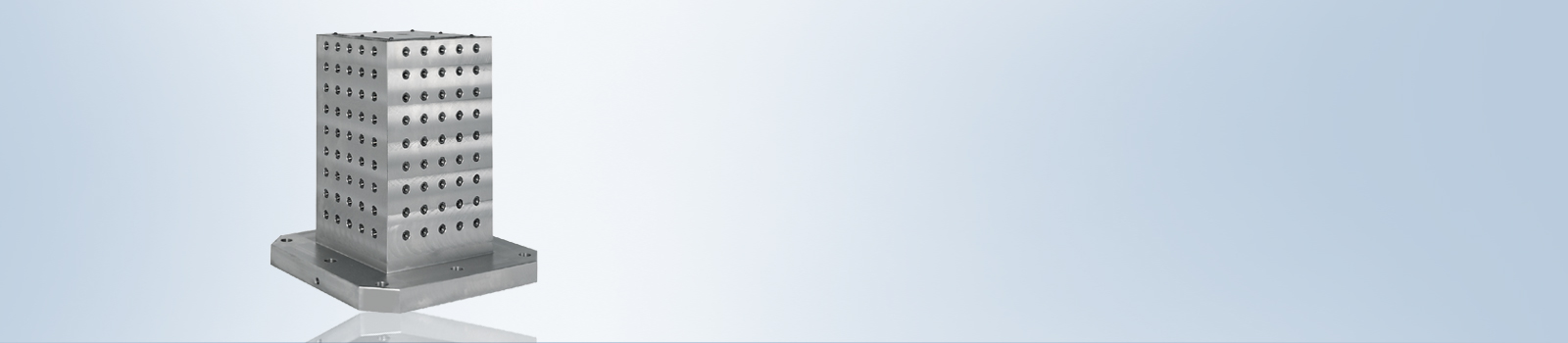

Home > products > clamping columns > Square Clamping Column TSG/SQ

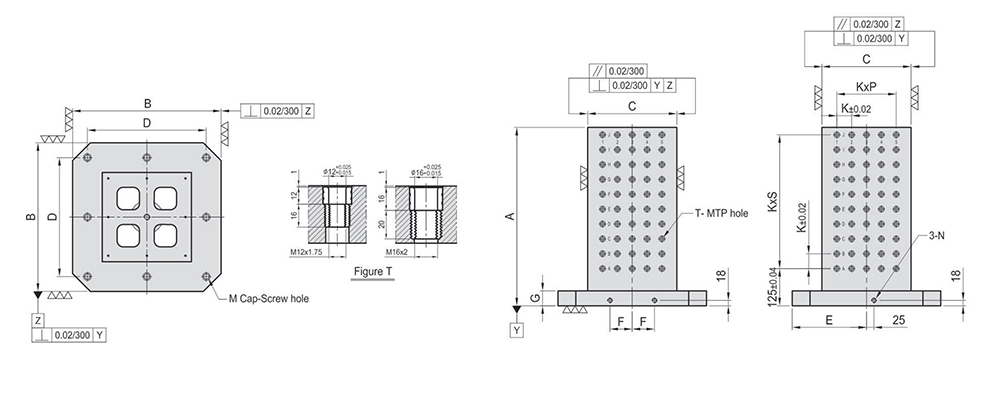

Model No.ABCDEFGKPSMNMTPMounting HolesWeight in kg
Cast IronAluminium
TSG/SQ/15050030015025015040505017M12M1264490-
TSG/SQ/25050040025032020055505037M16M16128415554
65017620073
TSG/SQ/30060050030040025075505049M16M16200824088
TSG/SQ/3507006303505003151005050511M16M162888360126
